Saxon 2007

Saxon has honed and refined its entire model line for 2007. Dozens of improvements enhance the ride and performance of each 2007 Saxon Model, including adding Brembo brakes and Progressive suspension as standard equipment.

Also new this year, they’ve introduced the thunderous new pro street Villain, with its low profile and huge 300mm rear tire, the highbar Hot Rod Sceptre and Gard Hollinger’s limited edition Mad Jack Bobber. This crew of warriors is cutting edge.

At Saxon, they’re committed to delivering high quality, reliable custom motorcycles designed to inspire your spirit to ride.

Check out the new model line-up:

Villain

Warranty — 2-Year Factory
Dry Weight — 655 lbs
Engine — OHV 45 deg V-Twin
Displacement –96 ci 1573 cc
Bore and stroke –3-5/8 x 4-5/8
Compression Ratio –10.1 to 1
Fuel System –S&S Super E Carburator
Fuel Capacity –4.5 Gals
Oil Capacity –3.5 Qts
Transmission –6-Speed Right Side Drive
Primary Drive –Chain
Final Drive –Belt
Frame Stretch –4″ backbone
Rake –40° neck 5° tree 45° total
Seat Height –25.5″
Rear Suspension –Progressive Hidden Shocks
Front Suspension –41 mm Telescopic 4″ over
Wheelbase –81.5″
Total Length –106″
Front Brake –Brembo 4 Piston Caliper
Rear Brake –Brembo
Front Tire –21″ x 90/90
Rear Tire –300 mm x 18″
Ignition –Electronic
Charging — Output32 Amps
Battery –550 CCA
Speedometer –Digital with integrated tach

Warlord

Warranty –2-Year Factory
Dry Weight — 629 Lbs
Engine — OHV 45 deg V-Twin
Displacement –96 ci 1573 cc
Bore and stroke –3-5/8 x 4-5/8
Compression Ratio –10.1 to 1
Fuel System –S&S Super E Carburator
Fuel Capacity –4 Gals
Oil Capacity –3.5 Qts
Transmission –6-Speed Right Side Drive
Primary Drive –Chain
Final Drive –Belt
Frame Stretch –6″ downtube, 2″ backbone
Rake –40° neck 5° tree 45° total
Seat Height –26″
Rear Suspension –Progressive Hidden Shocks
Front Suspension –41 mm Telescopic 11″ over
Wheelbase –83″
Total Length –108″
Front Brake –Brembo 4 Piston Caliper
Rear Brake –Brembo
Front Tire –21″ x 90/90
Rear Tire –260 mm x 18
Ignition –Electronic
Charging — Output32 Amps
Battery –550 CCA
Speedometer –Digital with integrated tach

Griffin

Warranty –2-Year Factory
Dry Weight — 677 Lbs
Engine — OHV 45 deg V-Twin
Displacement –96 ci 1573 cc
Bore and stroke –3-5/8 x 4-5/8
Compression Ratio –10.1 to 1
Fuel System –S&S Super E Carburator
Fuel Capacity –4 Gals
Oil Capacity –3.5 Qts
Transmission –6-Speed Right Side Drive
Primary Drive –Chain
Final Drive –Belt
Frame Stretch –6″ downtube, 2″ backbone
Rake –40° neck 5° tree 45° total
Seat Height –26″
Rear Suspension –Progressive Hidden Shocks
Front Suspension –56 mm Inverted 11″ over
Wheelbase –81.5″
Total Length –108″
Front Brake –Brembo 4 Piston Caliper
Rear Brake –Brembo
Front Tire –21″ x 90/90
Rear Tire –300 mm x 18″
Ignition –Electronic
Charging — Output32 Amps
Battery –550 CCA
Speedometer –Digital with integrated tach

Firestorm

Warranty –2-Year Factory
Dry Weight — 621 Lbs.
Engine — OHV 45 deg V-Twin
Displacement –96 ci 1573 cc
Bore and stroke –3-5/8 x 4-5/8
Compression Ratio –10.1 to 1
Fuel System –S&S Super E Carburator
Fuel Capacity –5 Gals
Oil Capacity –3.5 Qts
Transmission –6-Speed Right Side Drive
Primary Drive –Chain
Final Drive –Belt
Frame Stretch –4″ backbone
Rake –40° neck 5° tree 45° total
Seat Height –25.5″
Rear Suspension –Progressive Hidden Shocks
Front Suspension –41 mm Telescopic 4″ over
Wheelbase –79″
Total Length –105″
Front Brake –Brembo 4 Piston Caliper
Rear Brake –Brembo
Front Tire –21″ x 90/90
Rear Tire –260 mm x 18
Ignition –Electronic
Charging — Output32 Amps
Battery –550 CCA
Speedometer –Digital with integrated tach

Did I mention girls and in particular a redhead?

Here’s a Scepter model with a 96-inch S&S engine. I didn’t ride this bike. Paint was too girly for me.

Sceptre

Warranty –2-Year Factory
Dry Weight — 625 Lbs
Engine — OHV 45 deg V-Twin
Displacement –96 ci 1573 cc
Bore and stroke –3-5/8 x 4-5/8
Compression Ratio –10.1 to 1
Fuel System –S&S Super E Carburator
Fuel Capacity –4.5 Gals
Oil Capacity –3.5 Qts
Transmission –6-Speed Right Side Drive
Primary Drive –Chain
Final Drive –Belt
Frame Stretch — 2″ backbone
Rake –36° neck 3° tree 39° total
Seat Height –25″
Rear Suspension –Progressive Hidden Shocks
Front Suspension –41 mm Telescopic 2″ over
Wheelbase –72″

Here’s a Sceptre Hot Rod. I like the bars.

Total Length –100″
Front Brake –Brembo 4 Piston Caliper
Rear Brake –Brembo
Front Tire –21″ x 90/90
Rear Tire –260 mm x 18″
Ignition –Electronic
Charging — Output32 Amps
Battery –550 CCA
Speedometer –Digital with integrated tach

Here’s the new Silver Crown for 2007. I’d like to have one of these in the Bandit collection.

Crown

Warranty –2-Year Factory
Dry Weight — 603 lbs
Engine — OHV 45 deg V-Twin
Displacement –96 ci 1573 cc
Bore and stroke –3-5/8 x 4-5/8
Compression Ratio –10.1 to 1
Fuel System –S&S Super E Carburator
Fuel Capacity –3 Gals
Oil Capacity –3.5 Qts
Transmission –6-Speed
Primary Drive –Chain
Final Drive –Chain
Frame Stretch –6″ downtube, 2″ backbone
Rake –34°
Seat Height –25″
Rear Suspension –Progressive Hidden Shocks
Front Suspension –Springer 4″ over
Wheelbase –73″
Total Length –98″
Front Brake –Brembo 4 Piston Caliper
Rear Brake –Brembo
Front Tire –21″ x 120/70
Rear Tire –240 mm x 18
Ignition –Electronic
Charging — Output32 Amps
Battery –550 CCA
Speedometer –Digital with integrated tach

Additional Accesories
LACC 288 Pad Seat
LACC Frisco King Gas Tank
LACC Mad Fish Exhaust
LACC Crown Sissy Bar
LACC Black Crown Rear Fender
LACC Billet Crown Gas Cap
LACC 647F Tank Oil Bag
LACC Stop Here Tail Lamp

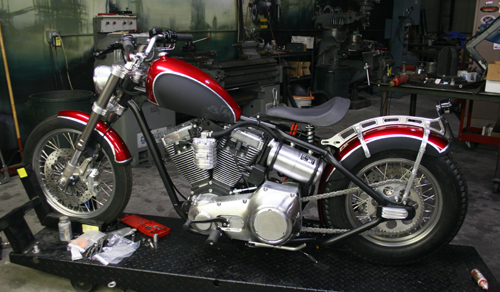

Mad jack

Warranty –2-Year Factory
Dry Weight — N/A
Engine — OHV 45 deg V-Twin
Displacement –96 ci 1573 cc
Bore and stroke –3-5/8 x 4-5/8
Compression Ratio –10.1 to 1
Fuel System –S&S Super E Carburator
Fuel Capacity –3 Gals
Oil Capacity –3.5 Qts
Transmission –6-Speed
Primary Drive –Chain
Final Drive –Chain
Frame Stretch –0″ downtube, 0″ backbone
Rake –32°
Seat Height –25″
Rear Suspension –None
Front Suspension –Buell Inverted with LACC Triple Trees
Wheelbase –N/A
Total Length –N/A
Front Brake –Brembo 4 Piston Caliper
Rear Brake –Brembo
Front Tire –19″ x 120/70
Rear Tire –150 mm x 16
Ignition –Electronic
Charging — Output32 Amps
Battery –550 CCA
Speedometer –Digital with integrated tach

Additional Accesories
LACC Hydraulic Shock Seat
LACC Mad Jack Gas Tank
LACC Mad Jack Exhaust
LACC Billet Risers
LACC Rear Fender
LACC Billet Mad Jack Gas Cap
Moon Eyes Oil Bag
LACC Stop Here Tail Lamp
LACC Beehive Oil Filter
LACC Billet Rear Fender Strut
LACC Billet Axle Covers
